What is Graphite Anode?

A graphite anode is the negative electrode in a lithium ion battery, made from carbon arranged in layered sheets that store and release lithium ions during charging and discharging. It serves as the primary host material where lithium ions are inserted between graphite layers when the battery charges, accounting for 10-20% of a battery's total weight.

Graphite's effectiveness as an anode comes from its atomic architecture. Carbon atoms bond in flat, hexagonal sheets called graphene layers, stacked on top of each other with a spacing of 3.354 angstroms. Weak van der Waals forces hold these layers together-strong enough to maintain structure, but weak enough to let lithium ions slip between them.

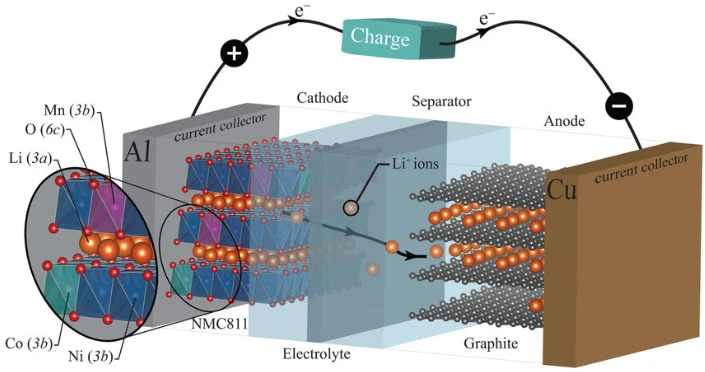

This layered structure creates natural pathways for ion movement. When a battery charges, lithium ions migrate from the cathode through the electrolyte and embed themselves between graphite layers through a process called intercalation. The spacing between layers expands by roughly 10% to accommodate these ions. When the battery discharges, the ions exit the graphite and return to the cathode, releasing stored energy.

The graphite forms what researchers call lithium-graphite intercalation compounds (Li-GICs) at different stages. At full charge, the anode reaches a composition of LiC₆-one lithium atom for every six carbon atoms-representing the maximum storage density graphite can achieve.

Graphite dominates battery anode materials for reasons that go beyond simple availability. Its theoretical capacity reaches 372 mAh/g, delivering reliable performance across thousands of charge cycles. More importantly, graphite operates at a low electrochemical potential of 0.01-0.2 V versus Li/Li⁺, which maximizes the voltage difference between anode and cathode, directly translating to higher energy density in the complete battery cell.

The material handles volume changes gracefully. Unlike alternatives that expand dramatically during lithiation, graphite's structure accommodates lithium ions with minimal swelling-typically less than 10%. This structural stability explains why graphite anodes routinely exceed 1,000 charge cycles with minimal capacity degradation.

Cost plays a decisive role. Natural graphite from mining operations and synthetic graphite from petroleum coke both offer production costs far below alternative materials. As of 2024, natural spherical graphite sells for approximately $7,000 per ton compared to synthetic graphite at $10,000 per ton. The material requires purity levels exceeding 99.95% for battery applications, achieved through purification processes that, while energy-intensive, remain economically viable at scale.

Safety considerations also favor graphite. The solid electrolyte interphase (SEI) layer that forms on graphite surfaces during initial charging acts as a protective barrier, preventing continuous electrolyte decomposition while allowing lithium ion transport. This self-protecting characteristic, discovered by researchers in 1990 using ethylene carbonate electrolytes, enabled the commercial viability of graphite anodes and sparked the lithium-ion battery revolution that followed.

Graphite Anode

The battery industry sources graphite through two distinct routes, each with specific advantages.

Natural graphite originates from flake crystalline deposits extracted through mining, primarily in China, Brazil, Madagascar, and India. Manufacturers process raw flake graphite through crushing, spheroidization-where mechanical forces shape irregular flakes into spherical particles-classification, and purification to reach battery-grade specifications. Natural graphite production consumes approximately 1.1 × 10⁴ MJ per ton of energy.

The spheroidization step proves critical. Battery performance improves with spherical particles because they pack more densely in electrodes, increasing volumetric energy density and improving electrical conductivity throughout the anode structure. Natural graphite typically exhibits higher crystallinity than synthetic alternatives, offering superior electrical and thermal conductivity.

Synthetic graphite starts from petroleum coke, needle coke, or pitch coke-byproducts of oil refining. Manufacturers heat these carbon precursors to temperatures exceeding 2,500°C during graphitization, realigning the carbon atoms into the ordered, layered structure characteristic of graphite. This process demands approximately 4 × 10⁴ MJ per ton-3.6 times the energy requirement of natural graphite production.

However, synthetic graphite delivers more consistent properties. The controlled manufacturing process produces uniform particle sizes and predictable electrochemical behavior, which battery manufacturers value for quality control. Currently, the industry splits roughly 55% synthetic and 45% natural graphite for anode production, though this balance shifts as natural graphite purification improves.

By 2020, natural graphite anode materials captured 39% of the market, with projections indicating continued growth driven by lower environmental impact and reduced energy consumption during production.

Graphite's widespread adoption masks a significant performance constraint: fast charging. When batteries charge rapidly, lithium ions arrive at the anode surface faster than they can intercalate into the graphite structure. The excess ions then deposit on the anode surface as metallic lithium-a phenomenon called lithium plating.

Lithium plating creates multiple problems. The plated metal doesn't contribute to battery capacity, effectively reducing the available energy storage. More concerning, repeated plating and stripping damage the anode structure and consume the liquid electrolyte, accelerating capacity fade. In extreme cases, lithium dendrites can grow through the separator between electrodes, causing internal short circuits.

The root cause lies in lithium diffusion kinetics. Inserting lithium ions between graphite layers requires them to overcome energy barriers as they move from the electrolyte into the solid structure. Under high current rates, concentration polarization develops-the lithium concentration at the anode surface exceeds what the material can absorb, driving the potential low enough to plate metallic lithium instead.

Researchers are addressing these limitations through several approaches. Surface coatings using amorphous carbon or lithium-ion conducting materials create more uniform lithium distribution and faster ion transport at the graphite surface. Electrolyte optimization with specific additives helps form more stable SEI layers that facilitate ion transfer. Some manufacturers modify graphite particle morphology or increase interlayer spacing to accelerate lithium diffusion.

Recent studies in 2024 have demonstrated that graphite anodes with optimized coatings and electrolyte formulations can sustain charging rates approaching 6C (full charge in 10 minutes) while maintaining cycle life beyond 500 cycles. However, this remains an active area of development as electric vehicle manufacturers target even faster charging capabilities.

Graphite Anode

Silicon-based anodes represent the primary challenge to graphite's dominance, driven by silicon's dramatically higher theoretical capacity of 4,200 mAh/g-more than ten times that of graphite. This capacity advantage stems from silicon's ability to bond with 4.4 lithium atoms per silicon atom (Li₄.₄Si), whereas graphite requires six carbon atoms to bond with a single lithium ion.

The appeal is obvious. Replacing even 10-20% of graphite with silicon could increase battery energy density by 10-30%, translating directly to longer driving range in electric vehicles. Several startups and major manufacturers have invested heavily in silicon anode development, with companies like Sila Nanotechnologies and BMW partnering on commercial applications targeted for the mid-2020s.

But silicon's advantage comes with a critical flaw: volume expansion. Silicon particles swell more than 300% during lithiation, compared to graphite's modest 10%. This massive expansion fractures particles, disrupts electrical connections, and destabilizes the SEI layer. The anode essentially pulverizes itself through normal operation, causing rapid capacity fade. Early silicon anodes barely survived 100 charge cycles.

Engineers are developing solutions. Nanostructured silicon-particles at the nanometer scale-better accommodates expansion stresses. Porous silicon structures provide internal void space for expansion. Silicon oxide (SiOx) offers a compromise with theoretical capacity of 2,675 mAh/g and reduced expansion compared to pure silicon. Advanced binders-the materials that hold anode particles together-incorporate elastic properties to maintain electrical contact during volume changes.

Silicon-graphite composites currently represent the most commercially viable approach. By blending 5-15% silicon into graphite anodes, manufacturers gain meaningful capacity improvements while limiting the destructive effects of silicon expansion. This hybrid strategy delivers 15-20% higher energy density than pure graphite anodes while maintaining 500-800 cycle life-acceptable for many applications.

Cost remains a significant barrier. Silicon-carbon composite anodes cost approximately 750,000 CNY per ton in 2024, compared to 50,000-100,000 CNY per ton for graphite anodes. Industry analysts project silicon anode materials need cost reduction to 110,000-170,000 CNY per ton for widespread commercial adoption.

The graphite anode market is experiencing substantial growth. Valued at $11.9 billion in 2022, industry projections estimate the market will reach $50.83 billion by 2030, representing a compound annual growth rate of 19.9%. This expansion directly tracks electric vehicle adoption and grid-scale energy storage deployment.

Supply dynamics merit attention. Each electric vehicle battery contains 50-100 kg of graphite-roughly ten times more graphite than lithium. A single Tesla Model S, for example, requires approximately 85 kg of graphite for its battery pack. Global EV production is scaling rapidly, with electric vehicles accounting for an increasing percentage of automotive sales.

China dominates graphite supply chains, controlling both natural graphite mining and synthetic graphite production. This concentration has raised supply security concerns among battery manufacturers in other regions. China's 2023 export restrictions on graphite materials heightened these concerns, prompting Western nations to invest in developing domestic graphite production and processing capabilities.

The purification process represents the primary cost driver. Converting mined natural graphite to battery-grade material requires strong acids and multiple processing steps, creating environmental considerations. However, the overall carbon footprint of natural graphite production remains significantly lower than synthetic graphite, primarily due to the energy-intensive graphitization process required for synthetic material.

Recycling presents both opportunity and challenge. Retired lithium-ion batteries contain substantial quantities of graphite-often 40-50% of the recovered "black mass" from recycling operations. However, extracting and re-purifying this graphite to battery-grade specifications remains technically difficult and economically marginal at current scales. Researchers are developing more efficient recycling processes, recognizing that closed-loop graphite recovery will become increasingly important as battery volumes grow.

While lithium-ion batteries represent graphite anode's largest application, the material serves in other electrochemical systems. In fuel cells, particularly proton exchange membrane fuel cells (PEMFCs), graphite forms the cathode flow field plates that distribute oxygen evenly to reaction sites while conducting electrons.

Aluminum production relies heavily on graphite anodes in the electrolytic smelting process. The Hall-Héroult process, which produces virtually all primary aluminum, uses large graphite anodes that gradually oxidize and must be replaced periodically. This industrial application consumes substantial graphite quantities globally.

Emerging battery chemistries are exploring graphite as well. Sodium-ion batteries and potassium-ion batteries can utilize graphite anodes, though with different intercalation mechanisms and capacities compared to lithium systems. As these alternative battery technologies mature, they may create additional demand for graphite anode materials.

Battery researchers are pursuing several avenues to enhance graphite anode performance without abandoning the material's fundamental advantages.

Interphase engineering focuses on optimizing the SEI layer formation. The SEI determines lithium transport kinetics, cyclability, and safety characteristics. Advanced electrolyte additives and surface treatments aim to create thinner, more uniform SEI layers that minimize lithium consumption during formation while maximizing ionic conductivity.

Particle engineering modifies graphite morphology to improve performance. Researchers are investigating artificial graphite with controlled pore structures, surface-modified particles with improved electrolyte wetting, and composite structures that combine different graphite types to optimize both capacity and rate capability.

Interlayer spacing modification represents another approach. By slightly expanding the spacing between graphene layers-for example, through chemical intercalation or structural defects-researchers can accelerate lithium diffusion rates. Recent work in 2024 demonstrated that carefully controlled interlayer expansion from 0.3354 nm to 0.342 nm significantly improved fast-charging capability while maintaining structural stability.

Coating technologies continue to advance. Both hard carbon and soft carbon coatings offer different benefits: hard carbon coatings enhance rate performance, particularly at high current densities, while soft carbon coatings improve initial coulombic efficiency and cycling stability. Selecting appropriate coating materials based on application requirements allows optimization of the capacity-rate-life triangle that defines battery performance.

Graphite Anode

Graphite balances multiple requirements that other materials struggle to match simultaneously. Its layered structure naturally accommodates lithium ions with minimal volume change (less than 10% expansion), enabling thousands of charge cycles. The material operates at very low potential (0.01-0.2 V), maximizing battery voltage. It's abundant, relatively inexpensive, and well-understood after decades of commercial use. While materials like silicon offer higher capacity, they suffer from severe volume expansion problems that graphite avoids.

Natural graphite comes from mining operations and typically offers better electrical conductivity due to higher crystallinity. It requires less energy to produce-about 1.1 × 10⁴ MJ per ton versus 4 × 10⁴ MJ per ton for synthetic graphite. Synthetic graphite, made by heating petroleum coke to over 2,500°C, delivers more consistent properties and purity. Currently, the industry uses about 55% synthetic and 45% natural graphite, though natural graphite's market share is growing due to environmental and cost advantages.

Graphite anodes face challenges with fast charging. When charging current is too high, lithium ions arrive faster than they can insert into the graphite structure, causing them to plate as metallic lithium on the anode surface instead. This lithium plating reduces capacity and damages the battery. Researchers are improving fast-charging capability through surface coatings, electrolyte optimization, and particle engineering, with recent 2024 studies achieving 6C charging rates (10-minute charge) while maintaining acceptable cycle life.

Silicon won't fully replace graphite in the near term, though it's becoming part of the solution. Silicon offers 10x higher capacity than graphite but expands 300% during charging, causing rapid degradation. The practical approach uses silicon-graphite composites, blending 5-15% silicon into graphite anodes to gain 15-20% higher energy density while managing expansion problems. Pure silicon anodes remain in development, with commercialization likely dependent on achieving acceptable cycle life and cost reduction.

The graphite anode exemplifies how materials that seem simple often work precisely because of that simplicity. Lithium ions need somewhere to go during charging-somewhere that's stable, reversible, and doesn't fall apart after a few cycles. Graphite's layered structure provides exactly that, without drama or complexity. While researchers chase higher capacities and faster charging, they're finding that departing too far from graphite's fundamental characteristics introduces problems that often outweigh the benefits. The material's continued dominance in lithium-ion batteries likely persists for decades not despite its limitations, but because those limitations are manageable and well-understood.

Data Sources:

Graphite as anode materials: Fundamental mechanism, recent progress and advances - Energy Storage Materials (2020)

Global Graphite Anode Market Analysis - Virtue Market Research (2024)

Natural graphite anode for advanced lithium-ion Batteries - Chemical Engineering Journal (2024)

The future of carbon anodes for lithium-ion batteries - Carbon Future (2024)

Fast-charging graphite anode for lithium-ion batteries - Applied Physics Letters (2024)

Review on Graphite Anodes for Fast-Charging Lithium-Ion Batteries - Advanced Functional Materials (2024)

Graphite: the new critical mineral - Nature Reviews Materials (2025)
