Engineering and production behind your order
Build your pallet truck battery program with Polinovel
We combine research, development, structural design and battery production within our business. Your purchasing team can work with us on the pack specification and the manufacturing requirement together, rather than resolving equipment fit and battery supply as separate tasks.
50,000㎡ manufacturing facility
Our manufacturing infrastructure includes upgraded production equipment and an automated laser welding line. It gives OEM buyers a production partner behind the battery specification, with engineering and manufacturing capabilities under the same organization.
50+ R&D engineers
Our engineering team works across battery materials, structural design and system integration. We assess the compartment, load demand, duty cycle and recharge window when developing an application-specific battery solution.
Support through the project lifecycle
We provide technical support from needs assessment and system design through after-sales service, with 24/7 service support. Your team has a manufacturer to work with as the project moves beyond the initial quotation.
These are company-wide capabilities. The standard 20Ah battery configuration is detailed in the specification table below.

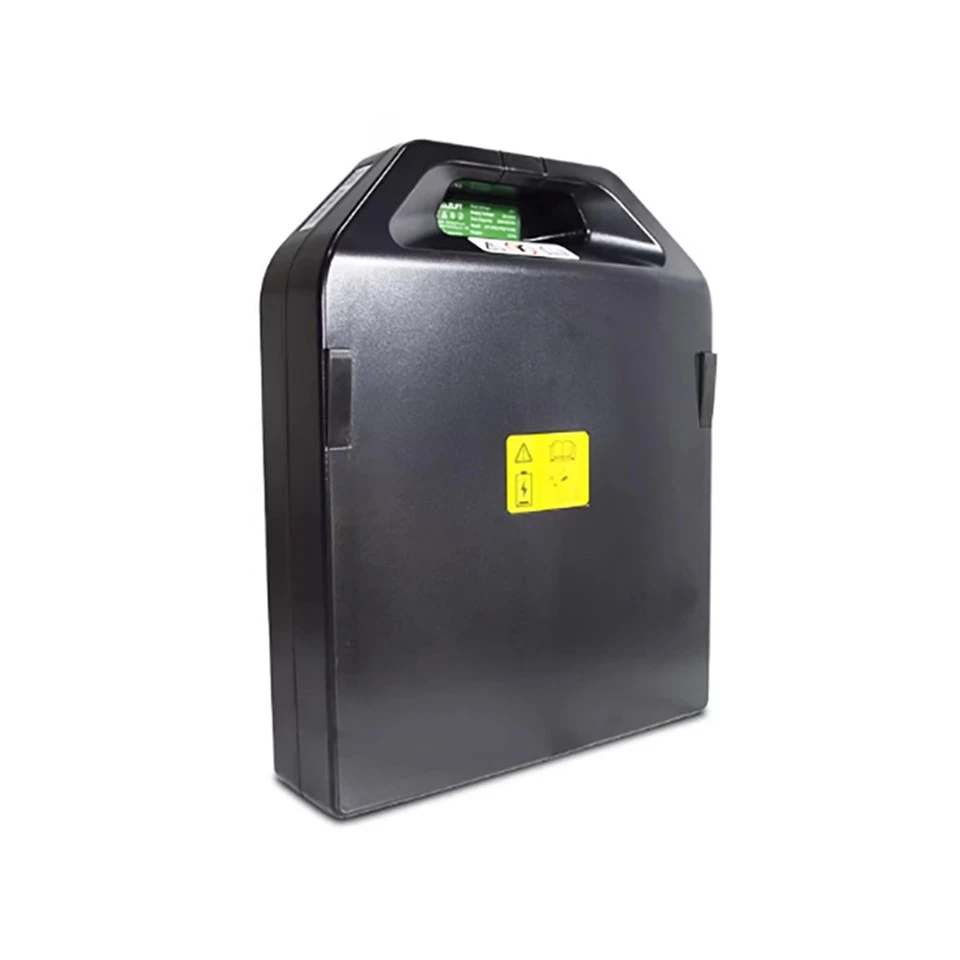

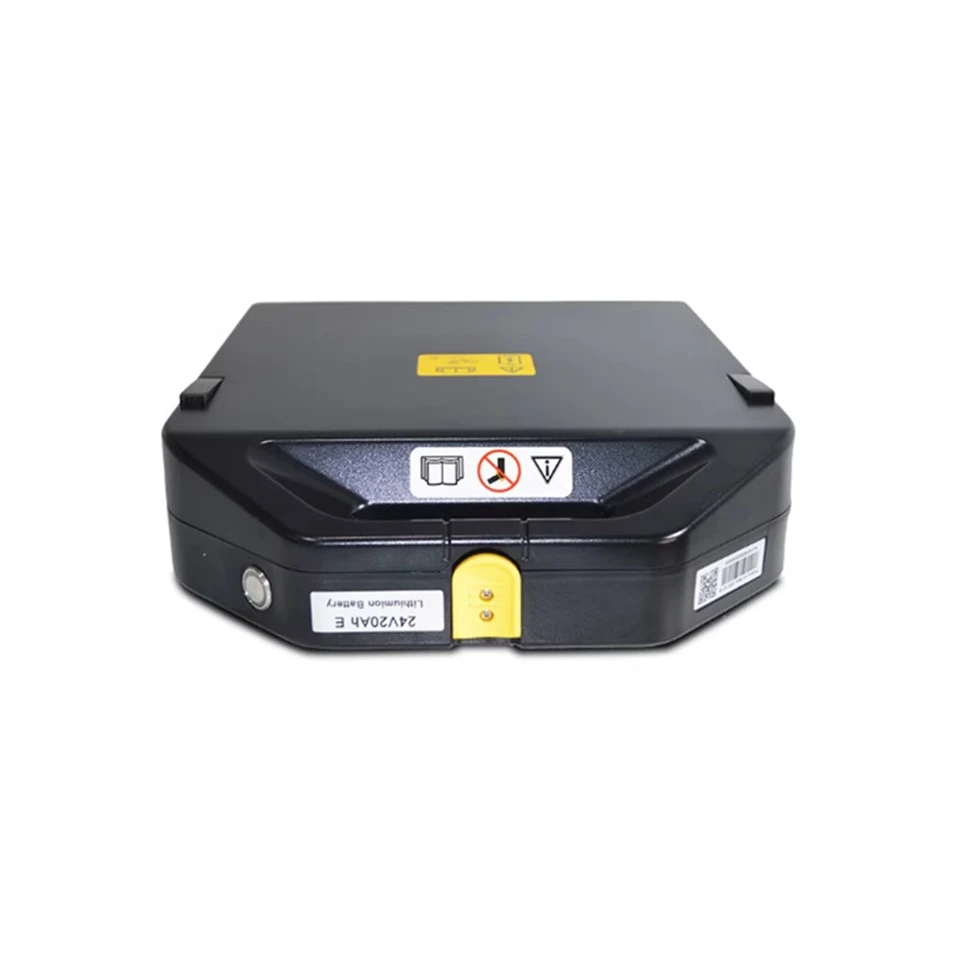

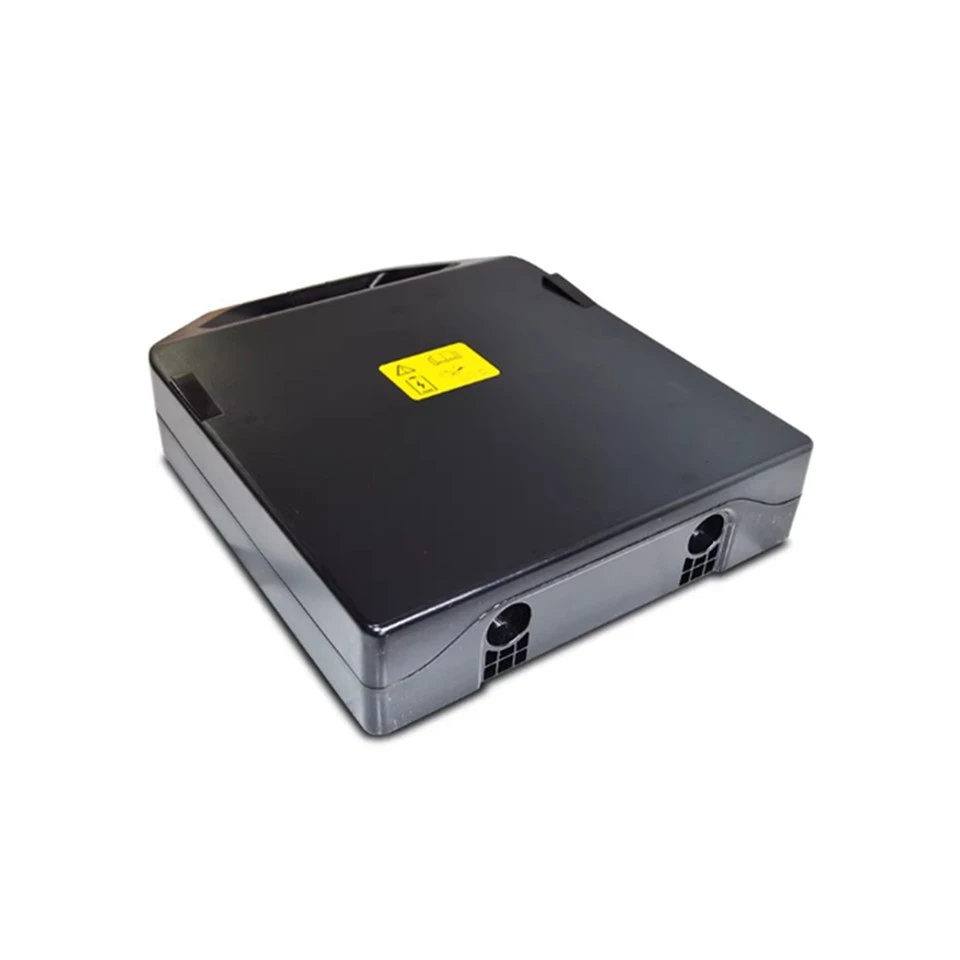

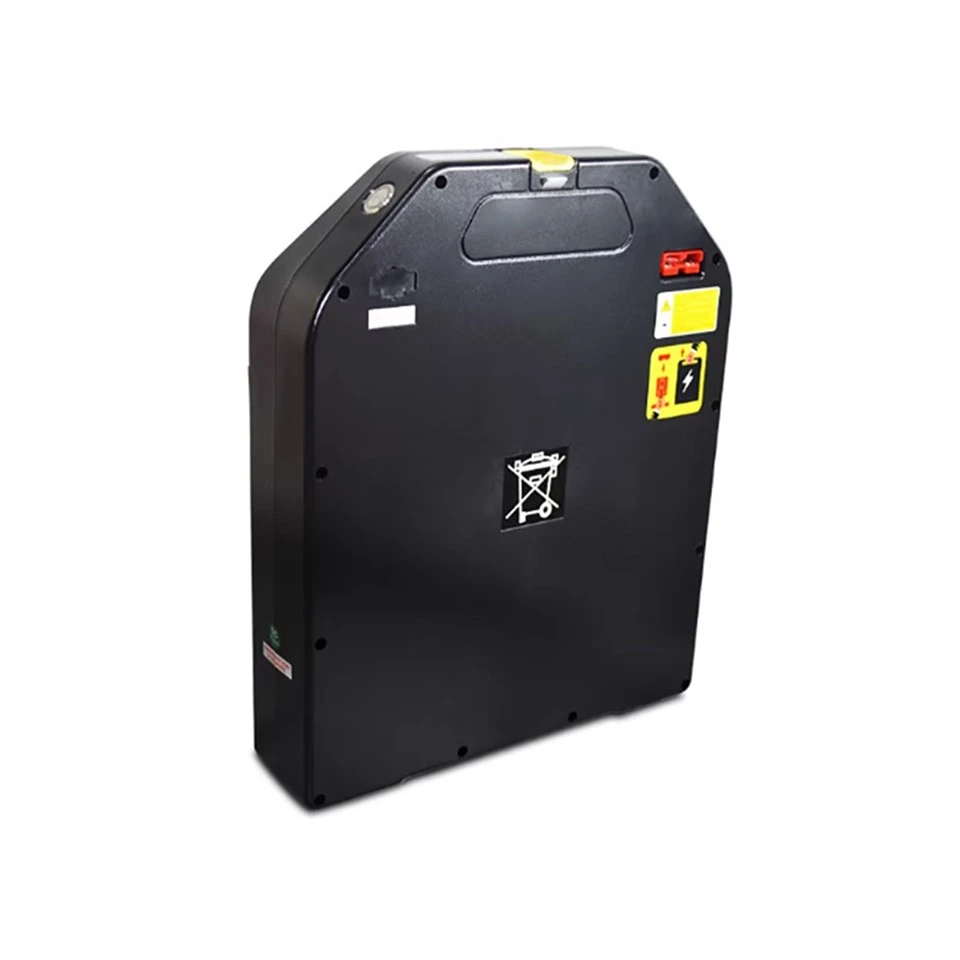

370 × 80 × 410mm enclosure with an 80mm-wide profile.
A compact pack with a defined application
Choose a 20Ah pallet jack battery around space and handling needs
Our 20Ah pack combines 512Wh of nominal energy with a weight of ≤6.5kg. It suits compact pallet trucks and light-duty material movement where battery space and handling weight influence the equipment decision.
- Space-efficient installation: the 370 × 80 × 410mm envelope provides a defined starting point for compartment and mounting design.
- LiFePO4 chemistry: a specified life of more than 4,000 cycles supports repeated daily pallet handling.
- Capacity choice: 30Ah and 50Ah alternatives let you compare additional energy and current capability within this range.
We assess load demand and charging requirements as part of application matching. For this standard 20Ah configuration, the maximum continuous charge and discharge currents are both 10A. If your equipment needs a different electrical or mechanical specification, our custom battery engineering service provides a separate development route.
Explore OEM battery engineering optionsTechnical comparison
Compare our 24V pallet jack battery configurations
Start with 20Ah for the compact 512Wh pack, or compare the 30Ah and 50Ah options against your truck's energy, weight and current requirements. Our engineers can use your equipment data to review the appropriate configuration.
| Specification | 20Ah | 30Ah | 50Ah |
|---|---|---|---|
| Nominal voltage | 25.6V | 25.6V | 25.6V |
| Nominal energy | 512Wh | 768Wh | 1,280Wh |
| Weight | ≤6.5kg | 8.5kg | 12kg |
| Maximum continuous charge current | 10A | 15A | 25A |
| Maximum continuous discharge current | 10A | 15A | 25A |
| Charge voltage | 29.2V | ||
| Dimensions (L × W × H) | 370 × 80 × 410mm | ||
| Cell chemistry | LiFePO4 (LFP) | ||
| Enclosure protection | IP54 | ||
| Specified cycle life | >4,000 cycles | ||
Source Polinovel pallet jack batteries for an OEM project or wholesale replacement program. We can discuss the standard configuration and any engineering changes as part of the same project inquiry.
From cell selection to pack production
Our battery manufacturing process supports your pallet truck project
We evaluate components during engineering and carry out quality inspections through the manufacturing stages. This connects the design work to production control, so your project is supported beyond selecting a capacity from a catalog.
Component assessment before manufacturing
Our engineering team assesses the battery cells, structural parts and other components against the application requirement. For OEM buyers, this brings the electrical specification and the physical pack design into the same development process.
Quality checks throughout production
Our technical staff performs inspections during manufacturing, backed by our cell-to-pack quality control approach. Production capability includes automated laser welding equipment within our wider battery manufacturing operation.
See our battery manufacturing facilities and engineering background.
Our battery manufacturing operation. This facility image illustrates company-wide production capability.
Make the battery part of your product
Develop OEM pallet truck battery solutions with our engineering team
When the standard pack does not match your equipment or brand requirements, we can develop a custom battery solution. Our Polinovel OEM battery service covers mechanical integration, functional requirements and branded presentation, so your sourcing brief can address the complete battery product.
Housing and connection design
We customize enclosure dimensions and shapes to drawings, with connector choices across our custom battery range. This lets an equipment project address compartment fit and interface design together.
Functions matched to the application
Our wider custom engineering capabilities include indicators, switches, CANbus, RS485, Bluetooth and self-heating. We select the applicable functions around the machine, operating environment and project scope.
Your brand on the delivered product
We support housing colors, label stickers, silk printing, branded cartons and printed manuals. Battery distributors and equipment brands can develop the pack and its market presentation with us.
Choose the right development route. The 20Ah specifications on this page describe the standard pack. The capabilities above apply to separately engineered custom projects; functions, enclosure protection and interfaces are defined for the agreed design.
A manufacturing relationship beyond the first order
Work with us from pallet jack battery requirements to delivery
We support needs assessment, component engineering, manufacturing and shipment as connected stages. For an OEM sourcing team or a battery importer, this keeps the product requirement, production work and supply scope within one project conversation.
Engineering around real operating needs
We assess peak current, duty cycles and recharge windows, along with physical fit. This helps define the battery around the equipment instead of choosing by voltage and capacity alone.
Production and export preparation
We carry out manufacturing-stage inspections and provide insulated battery packaging for transport. Our custom supply service includes branded packaging and manuals where specified in the project.
Technical support after delivery
Our support extends into after-sales service, with 24/7 service availability. For your purchasing team, the relationship continues when questions arise during equipment integration or use.
Product and supplier questions
What buyers ask before choosing our pallet jack batteries
Why work with Polinovel for an OEM battery order?
We combine R&D, structural design, system integration and production, supported by a 50,000㎡ manufacturing facility and more than 50 R&D engineers. We can work with your team on the specification, manufacturing requirement, branding and after-sales support rather than stopping at a product quotation.
What does the standard 24V 20Ah pack provide?
The pack uses LiFePO4 cells and provides 512Wh at 25.6V nominal voltage. It measures 370 × 80 × 410mm, weighs ≤6.5kg, and specifies IP54 protection, more than 4,000 cycles and a 10A maximum continuous charge and discharge current.
Can you adapt the battery to our truck design or brand?
Our custom battery service supports enclosure dimensions and shape, connectors, functional requirements and branding. Housing colors, labels, branded cartons and printed manuals can be included in a custom project; the final configuration is defined through engineering review.
How do you control quality during battery manufacturing?
We assess components during engineering and conduct quality inspections through the manufacturing stages. Our company's cell-to-pack quality control approach connects component selection, pack design and production oversight.
What support is available after we place an order?
We provide technical support across needs assessment, system design and after-sales service, with 24/7 service support. Send your equipment details, order quantity and destination with your inquiry so we can also address the production and delivery requirements for your project.
Start with your machine, your order or your brand
Bring your pallet jack battery project to Polinovel
Tell us whether you need the standard 20Ah pack, a wholesale replacement battery order or a custom OEM solution. We bring engineering, manufacturing and project support to the discussion, with an inquiry response within 12 hours.
- For a standard pack quotation: capacity, order quantity and delivery destination.
- For equipment integration: truck model or drawing, battery space, interface and electrical requirements.
- For a branded product: housing, label, carton and manual requirements.
Need a different capacity? Explore our pallet jack battery range or send your operating requirements directly to our team.
