48V 420Ah Reach Truck Lithium Battery
The 48V 420Ah lithium battery provides reliable, long-lasting power for reach trucks operating in narrow aisles and high-frequency warehouse environments. With high-quality LFP cells and an intelligent BMS, it ensures consistent voltage, comprehensive safety protection, and maintenance-free operation. Its compact, fully sealed design supports precise maneuvering, continuous operation, and improved efficiency across every shift.
Key Advantages of This 48V Lithium Battery
Advanced LiFePO4 technology ensures efficiency, safety, and extended battery life.
Long Cycle Life
Engineered to provide thousands of charge cycles-up to 8–10 times longer than lead-acid alternatives-this battery reduces replacement frequency and lowers total operational costs.
Maintenance-Free Design
Unlike traditional lead-acid batteries, this LiFePO4 battery requires no watering, cleaning, or equalization, saving labor and minimizing maintenance interruptions.
Rugged and Reliable
Fully sealed and robustly built, it resists water, dust, and corrosion, performing reliably in cold storage, high-utilization, or challenging warehouse environments.
Advanced Safety Features
Integrated intelligent BMS protects against overcharge, over-discharge, overcurrent, short circuits, and thermal risks, providing dependable and safe operation for operators and equipment.
Technical Specifications
| Electrical Specifications | Mechanical Specifications | ||
| Nominal Voltage | 51.2V | Dimensions (LxWxH) | 766*375*567mm |
| Nominal Capacity | 420Ah | Weight | 195kg |
| Energy | 21504Wh | Case Material | SPCC |
| Self Discharge | <3% per month | IP Rating | IP54 |
| Cycle Life | >4000 cycles | Cell Type | LiFePO4 |
| Charge & Discharge Specifications | Temperature & Other Specifications | ||
| Charge Current | 250A | Charge Temperature | 0°C to 55°C / 32°F to 131°F |
| Charge Cut-off Voltage | 58.4V | Discharge Temperature | -20°C to 60°C / -4°F to 140°F |
| Charge Terminal/Connector | REMA | Storage Temperature | 10°C to 45°C / 50°F to 113°F |
| Discharge Current | 200A | Display | LED Display |
| Discharge Cut-off Voltage | 42.4V | Communication | RS485/CAN |
| Discharge Terminal/Connector | REMA | Shipping Classifiation | UN3480, Class9 |
What This Battery Actually Is
The FL51420 is a lithium iron phosphate (LiFePO4) battery pack for reach trucks. 48V nominal (51.2V actual), 420Ah capacity, 21.5 kWh usable energy.
Here's where this battery delivers real value:
High-volume operations: Designed for two- or three-shift use where utilization is high. For single-shift, low-duty applications, the return on investment may be limited.
Cold storage: One of the areas where this battery shows the most noticeable performance advantages, especially under low-temperature operation.
Low-maintenance operations: No watering, no equalization, no acid checks.
This battery is designed to address specific, well-documented operational challenges commonly found in reach truck applications.
The BMS: What It Does and Why It Matters
Every lithium battery pack relies on a battery management system (BMS). The BMS plays a critical role in safety, reliability, and day-to-day uptime.
At its core, the BMS continuously monitors every cell in the pack and makes real-time adjustments. If a cell runs hot or charges unevenly, the system intervenes before the issue escalates.
Why does this matter? In narrow aisle operations, a disabled reach truck doesn't just stop working-it blocks access to everything behind it. One battery failure can halt multiple trucks, disrupt picking schedules, and create a cascading delay across an entire shift.
The BMS provides protection against overcharge, over-discharge, overcurrent, short circuits, and thermal events. While these functions are standard in lithium systems, their effectiveness depends heavily on system design and implementation quality.
Opportunity Charging: The Behavioral Shift
This is often the biggest adjustment for operators, as lithium charging follows very different principles from lead-acid.
With lead-acid batteries, operators are trained to follow full discharge–recharge cycles. Partial charging accelerates degradation, so plugging in during short breaks is avoided.
LiFePO₄ batteries work differently. Short, frequent charging sessions-during lunch or brief pauses-do not harm the battery. There is no memory effect and no penalty for partial cycles.
In real-world operations, this shift in charging behavior can extend effective daily runtime by 30–40%-not by increasing battery capacity, but by reducing avoidable idle time.
Cold Storage: Where Performance Differences Become Clear
Cold environments expose the limits of traditional lead-acid batteries. At 0 °C, usable capacity typically drops by 20–30%. At –18 °C, common in freezer operations, capacity loss can reach 50%. Charging is also restricted-lead-acid batteries must be warmed before charging, adding 30–45 minutes to every shift transition.
In cold storage operations, this combination of reduced capacity and charging delays often leads to shortened runtimes, extended downtime, and unpredictable shift starts during peak periods.
By contrast, lithium iron phosphate batteries maintain stable performance in low-temperature environments and can be charged without extended warm-up delays. This allows trucks to remain in the freezer longer, simplifies shift transitions, and reduces the risk of starting a shift with partially charged batteries.
While results vary by operation, cold storage facilities consistently see clearer, more measurable gains from lithium-less downtime, more predictable runtimes, and fewer battery-related interruptions.
Operational Scenarios
High-Volume Warehouses:
In busy warehouses operating multiple shifts, reach trucks are expected to run continuously for 12–16 hours. Lead-acid batteries often require swap and cooling periods, creating downtime that disrupts picking cycles.
Polinovel 48V 420Ah lithium batteries provide uninterrupted operation, maintaining stable lifting capacity and travel speed throughout the shift. This ensures consistent throughput and helps meet tight delivery schedules.
Cold Storage Facilities:
In chilled or freezer environments, battery performance drops significantly at low temperatures, and charging delays reduce truck availability.
Polinovel lithium batteries maintain capacity and allow flexible opportunity charging even in sub-zero conditions. This keeps trucks operational, reduces downtime, and supports predictable material flow in temperature-sensitive operations.
Peak-Demand Fulfillment Centers:
During peak periods, fleets often struggle to meet demand without leasing additional trucks, increasing operational costs.
Polinovel lithium batteries enable the existing fleet to handle surges efficiently, eliminating unplanned downtime and temporary fleet expansion. This maximizes equipment utilization and reduces peak-season operational overhead.
Versus Lead-Acid: The Honest Comparison
| Factor | Lead-Acid | LiFePO4 |
|---|---|---|
| Upfront cost | Lower | 2.5-3x higher |
| Cycle life | 300-500 cycles | 4,000+ cycles |
| Usable capacity | 50-60% of rated | 80-90% of rated |
| Charging time | 8-10 hours | Under 2 hours |
| Maintenance | 8-12 hrs/mo | Negligible |
| Cold performance | Poor | Good |
| Established? | Yes | Learning curve |
Lead-acid isn't bad technology. It's proven, it's familiar, and if your operation doesn't stress your batteries hard, it works fine. The case for lithium is strongest when utilization is high and downtime is expensive.

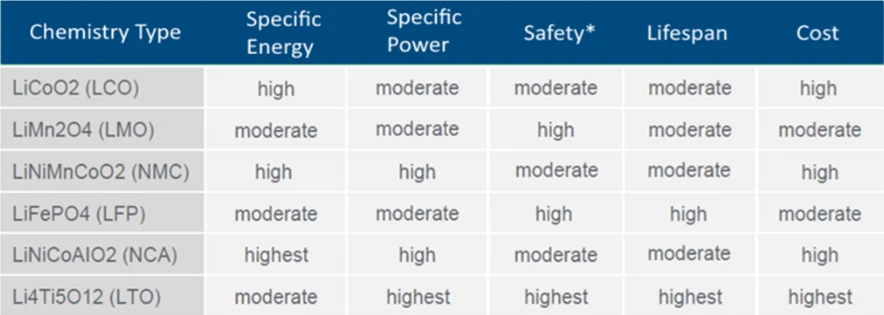

Versus Other Lithium Chemistries
Other lithium chemistries, such as NMC (nickel manganese cobalt) and NCA (nickel cobalt aluminum), offer higher energy density, providing more power in a smaller footprint.
LiFePO4 batteries are particularly suited for material handling applications due to:
Longer cycle life: LFP typically outlasts NMC by 2-3x
Thermal stability: Less sensitive to temperature extremes, less fire risk
Cobalt-free: Supply chain and ethical sourcing considerations
Installation Made Simple
Polinovel lithium forklift batteries use standard REMA connectors that fit existing battery compartments. Most reach trucks require no modification, allowing for a straightforward swap from lead-acid to lithium.
Timeline for a typical conversion:
30-45
Physical swap
15-20
BMS configuration
30
Operator training
Conversions can often be completed in a single day for small fleets. Existing charging infrastructure generally remains compatible, though chargers with lithium-optimized profiles improve efficiency. Many facilities initially use their current chargers and upgrade as needed.
Who Should Consider This
The best fits are:
Multi-shift operations where battery swaps or charging delays affect productivity
Cold storage facilities dealing with temperature-related capacity loss
Operations where maintenance labor is expensive or scarce
Facilities with compliance requirements around acid/spills/fumes
Less compelling for:
Single-shift, low-utilization operations
Facilities where current battery setup isn't causing problems
Tight budgets where the upfront cost can't be absorbed
