What is Regenerative Braking System?

A regenerative braking system converts a vehicle's kinetic energy into electrical energy during deceleration, storing it in the battery instead of wasting it as heat. This technology, found in electric and hybrid vehicles, uses the electric motor as a generator to capture energy that would otherwise be lost through friction braking.

The regenerative braking process relies on reversing the function of electric motors. During normal driving, the motor draws power from the lithium car battery to spin the wheels and propel the vehicle forward. When braking occurs, this relationship flips-the wheels drive the motor, converting it into a generator that produces electricity.

This conversion happens through electromagnetic induction. As the vehicle slows down, the motor's magnetic field creates resistance that both slows the wheels and generates electrical current. The system's electronic control unit manages this process, determining how much regenerative force to apply based on factors like vehicle speed, battery charge level, and brake pedal pressure.

The generated electricity flows back to the battery pack for storage. Modern systems can recover between 60-70% of the energy used during braking, with the remaining 30-40% lost to heat and inefficiencies in the conversion process. Research from 2024 shows that under optimal conditions, regenerative braking can achieve efficiency rates of up to 85% when descending hills, though typical city driving sees rates around 48% for kinetic energy recovery.

Traditional friction brakes work alongside the regenerative system. At higher speeds and during moderate braking, regenerative braking handles most of the work. When you need to stop quickly or you're traveling below 5-10 mph, mechanical brakes take over because electric motors become less effective at lower speeds.

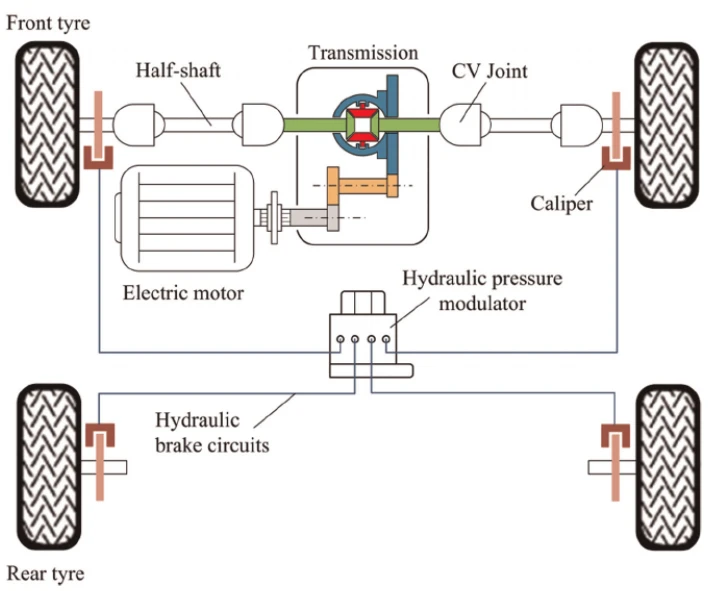

Five main components work together to capture and store braking energy. The electric motor serves dual purposes-propelling the vehicle and acting as a generator during braking. Most EVs use permanent magnet AC motors because they offer efficiency ratings between 83-95% across different driving scenarios, compared to 65-94% for induction motors.

The battery pack stores the recovered energy. Lithium-ion batteries dominate this space because they handle the high current demands of regenerative braking better than other battery chemistries. The battery management system monitors each cell's voltage to prevent overcharging-if the battery reaches full capacity, the system automatically switches to friction brakes instead.

The electronic control unit acts as the system's brain. It processes inputs from multiple sensors including wheel speed, brake pedal position, battery state of charge, and vehicle velocity. Based on this data, it calculates optimal regenerative force and coordinates the transition between regenerative and friction braking.

An inverter converts the AC current generated by the motor into DC current that the battery can store. This bidirectional power flow distinguishes EVs from traditional vehicles-the same hardware that converts battery DC to motor AC during acceleration reverses during braking.

The friction brake system provides backup stopping power and handles situations where regenerative braking alone isn't sufficient. This includes emergency stops, low-speed braking, and situations where the battery is already fully charged.

Regenerative Braking System

The amount of energy you can recover depends on several variables. The U.S. Department of Energy estimates regenerative braking recovers 5-9% of total energy for hybrids and 22% for electric vehicles in combined city and highway driving. These percentages translate to meaningful range extensions-some estimates suggest regenerative braking accounts for approximately 20% of an EV's total driving range.

Stop-and-go traffic offers the best recovery opportunities. Each time you decelerate from 30 mph in city driving, a typical EV can recover about 0.061 kWh of energy. Over 100 stops during urban driving, that adds up to 6.05 kWh saved compared to friction-only brakes. Highway driving sees less benefit because steady speeds require fewer braking events.

Temperature affects efficiency significantly. Cold weather reduces battery charging capacity, which limits how much regenerative braking the system can apply. Some manufacturers have developed battery thermal management strategies that pre-heat the battery in cold conditions to maximize regenerative braking potential.

The battery's state of charge also matters. When your battery is nearly full, the system has limited capacity to accept more energy. Most EVs recommend charging to only 80% for daily use specifically to preserve regenerative braking capacity. This headroom allows the battery to accept energy during deceleration without risking overcharge.

Vehicle speed influences recovery too. Higher speeds generate more kinetic energy, meaning there's more energy available to capture. A vehicle braking from 75 mph can recover approximately 0.38 kWh, compared to 0.061 kWh when stopping from 30 mph. Hills amplify this effect-descending from 650 meters to 125 meters over 16.4 km can regenerate 1.3 kWh of energy under optimal conditions.

Many modern EVs offer one-pedal driving modes that maximize regenerative braking. When activated, lifting your foot off the accelerator initiates strong regenerative braking-strong enough that you can bring the vehicle to a complete stop without touching the brake pedal under normal conditions.

Different manufacturers take varying approaches to implementing this feature. Tesla's one-pedal driving activates by default, with only two adjustment levels. Kia and Hyundai offer up to five different regenerative braking strengths, controlled through steering wheel paddles. Porsche takes a different philosophy, minimizing regenerative braking to allow more coasting, which they argue is more efficient for certain driving styles.

The sensation takes adjustment. When you first experience strong regenerative braking, it feels like the car is actively braking when you lift off the accelerator. Some drivers find this jerky or unnatural initially. The brake pedal feel also changes because the system blends regenerative and friction braking-this can create a "wooden" sensation as the computer seamlessly switches between systems.

One-pedal driving works best in urban environments with frequent stops. Traffic lights, stop signs, and slow-moving traffic provide constant opportunities for energy recovery. Highway driving sees less benefit because you spend more time at steady speeds. Some research suggests that aggressive use of one-pedal driving, with constant acceleration and regenerative braking cycles, can actually reduce efficiency compared to smooth, predictive driving with moderate regeneration.

Safety considerations exist around one-pedal driving. Studies from 2024 found that while it's safe in low-urgency situations, drivers showed delayed brake pedal application in high-urgency or uncertain scenarios. The extended time drivers spent releasing the accelerator to engage regenerative braking, combined with uncertainty about when to actually press the brake, created potential safety gaps in emergency situations.

Regenerative braking significantly extends the life of friction brake components. Because the electric motor handles most braking duties during normal driving, brake pads and rotors wear much more slowly. Some EV owners report brake pads lasting 100,000 miles or more-two to three times longer than traditional vehicles.

This extended life creates an unexpected maintenance consideration. Brake components can develop rust or corrosion from disuse, particularly in humid climates. Many manufacturers recommend periodic brake system inspections and lubrication even if wear isn't significant. Some systems automatically engage friction brakes periodically to prevent seizing or surface corrosion.

The reduced brake dust also carries environmental benefits. Traditional friction brakes release fine particles into the air-particulate matter that contributes to air pollution. With regenerative braking handling 50-80% of braking events, EVs generate substantially less brake dust than conventional vehicles.

Cost savings from reduced brake maintenance partially offset the higher initial cost of EVs. While exact savings vary by driving habits and vehicle model, reduced brake servicing typically saves several hundred dollars over the vehicle's lifetime.

The relationship between regenerative braking and battery longevity is more nuanced than initially understood. Early concerns suggested that frequent charging cycles from regenerative braking would accelerate battery degradation. Research from 2015-2023 reveals the opposite-higher levels of regenerative braking generally reduce battery aging.

The key factor isn't the short-duration, high-current charging during braking events. Instead, long-duration charging periods with even modest current rates pose greater risks for lithium plating, a degradation mechanism that reduces battery capacity and performance. Regenerative braking actually helps by reducing the depth of discharge during driving, which extends overall battery life.

Studies tracking vehicles over 50,000-100,000 km found that higher regenerative braking levels reduced capacity fade, particularly at high state of charge and low temperature conditions that normally accelerate lithium plating. Optimized regenerative braking strategies can keep capacity fade around 10% even after 100,000 km of driving.

Temperature and state of charge remain critical factors. Lithium car battery systems with sophisticated thermal management can better handle regenerative braking across all conditions. The battery management system must balance accepting regenerative energy against protecting battery health, sometimes limiting regeneration when conditions aren't optimal.

Series regenerative braking maximizes energy recovery by prioritizing electric motor braking over friction brakes. The system uses regenerative braking to its full capacity first, only engaging friction brakes when you need more stopping power than the motor can provide. This architecture works well for vehicles with powerful motors and sophisticated control systems.

Parallel regenerative braking distributes braking force between the electric motor and friction brakes throughout the deceleration process. The control system continuously balances both types of braking based on factors like deceleration rate, vehicle speed, and battery charge state. This approach provides more traditional brake feel but typically recovers less energy than series systems.

Some manufacturers implement modified braking strategies that combine benefits of both approaches. These systems use maximum regenerative braking as the default but incorporate friction braking earlier when needed for safety or when regenerative capacity is limited.

Hybrid energy storage systems represent an advanced approach. These combine lithium-ion batteries with supercapacitors or kinetic accumulators. Supercapacitors excel at handling high-power peak demands during hard braking, while batteries provide stable, long-term energy storage. This division of labor can improve overall system efficiency and extend battery life, though cost and complexity currently limit widespread adoption.

Modern regenerative braking systems increasingly incorporate artificial intelligence and machine learning. Fuzzy logic controllers adjust braking force distribution based on multiple parameters including vehicle speed, braking intensity, battery state of charge, and driver behavior patterns. Research from 2024 shows these adaptive systems can improve energy recovery rates by 13-30% compared to fixed distribution strategies.

Predictive algorithms take this further. By analyzing route topography, traffic patterns, and historical driving data, these systems can optimize regenerative braking strategy in advance. If the system knows a downhill section is approaching, it might adjust battery charge limits to ensure maximum regenerative capacity is available when needed.

Model Predictive Control (MPC) represents the cutting edge. These algorithms model vehicle dynamics in real-time and calculate optimal braking force distribution multiple times per second. Early implementations show promise for improving both energy recovery and vehicle stability, particularly in challenging conditions like low-traction surfaces.

Integration with autonomous driving systems opens new possibilities. Self-driving vehicles can brake more predictably and efficiently than human drivers, timing regenerative braking events for maximum energy recovery while maintaining safety. This could push regenerative braking efficiency even higher in future autonomous EVs.

City driving provides ideal conditions for regenerative braking. Frequent stops at traffic lights, stop signs, and for pedestrians create numerous opportunities for energy recovery. Drivers report noticeable range improvements in urban environments-some vehicles show 10-15% range extension compared to highway driving.

Highway driving sees less regenerative braking benefit. Steady cruising speeds mean fewer deceleration events. When you do need to slow down on highways, it's often for gradual speed changes rather than full stops. However, highway traffic congestion can actually improve regenerative braking opportunities by creating stop-and-go patterns.

Mountainous terrain dramatically affects regenerative braking performance. Descending steep grades generates substantial potential energy that the system can capture. Some electric buses serving hilly routes recover enough energy during descents that they consume less overall energy than buses operating on flat terrain. Conversely, climbing hills depletes the battery faster, and the recovered energy during descent rarely equals the energy spent climbing.

Cold weather reduces regenerative braking effectiveness. Battery charging capacity decreases at low temperatures, limiting how much energy the system can recover. Some EVs display a regenerative braking gauge that changes from green to gray when cold temperatures limit the system's capacity, warning drivers to rely more on friction brakes.

Regenerative Braking System

The global regenerative braking system market reached $7.83 billion in 2024 and projects to grow at 12.1-13.5% annually through 2030. This growth tracks directly with electric vehicle adoption-as more EVs hit the roads, demand for regenerative braking components increases proportionally.

Asia Pacific dominates the market with 53% share, driven by China's massive EV production and Japan's hybrid vehicle expertise. Europe follows closely, pushed by aggressive emissions targets and strong consumer demand for sustainable transportation. North America's market grows more moderately but steadily as EV adoption accelerates.

Battery electric vehicles drive most of the demand, accounting for the largest market share by propulsion type. Passenger cars represent the dominant vehicle segment, though commercial vehicle applications are growing rapidly. Electric buses and delivery trucks particularly benefit from regenerative braking given their frequent-stop operational patterns.

Technology development focuses on several fronts. Brake-by-wire systems eliminate mechanical connections between the brake pedal and braking components, allowing more sophisticated blending of regenerative and friction braking. In-wheel motors place electric motors directly in the wheels, improving regenerative braking response and enabling independent control of each wheel.

Wide-bandgap semiconductors like silicon carbide and gallium nitride enhance power conversion efficiency in inverters. These materials handle higher voltages and temperatures than traditional silicon, reducing energy losses during the AC-to-DC conversion that occurs during regenerative braking.

Regenerative braking effectiveness varies with speed. It works best at moderate to high speeds where the electric motor can generate significant power. Below 5-10 mph, effectiveness drops sharply because motor torque decreases at low speeds. Most systems automatically blend in friction brakes at low speeds and switch entirely to friction brakes for the final stop.

No. Regenerative braking supplements battery charging but cannot fully recharge a depleted battery. It recovers a portion of energy used during driving-typically 15-25% of total energy consumption for electric vehicles. You still need to plug in to fully recharge. Think of regenerative braking as extending your range rather than eliminating charging needs.

The blended braking system combines regenerative and friction braking, creating a different pedal feel than traditional vehicles. As you press the brake pedal, the system starts with regenerative braking and gradually blends in friction braking. This transition can feel "wooden" or less direct than pure hydraulic brakes. Newer EVs have significantly improved pedal feel through better calibration.

When the battery reaches full capacity, regenerative braking effectiveness decreases or stops entirely. The battery management system prevents overcharging by limiting or blocking regenerative current flow. The system automatically switches to friction brakes instead. This is why manufacturers recommend charging to only 80% for daily driving-it preserves regenerative braking capacity.

Regenerative Braking System

Understanding your vehicle's regenerative braking capabilities helps maximize its benefits. Check your owner's manual for specific recommendations about charge levels, driving modes, and conditions that affect regenerative braking performance.

Most EVs allow you to adjust regenerative braking strength. Experiment with different settings to find what works for your driving style and typical routes. Higher settings maximize energy recovery but require more adjustment to your driving technique. Lower settings provide a more traditional driving feel but sacrifice some efficiency.

Monitor your vehicle's regenerative braking gauge during cold weather. When capacity is limited, adjust your driving accordingly-allow more stopping distance and use the brake pedal more proactively. Some vehicles offer battery preconditioning that warms the battery before driving to improve regenerative braking performance in cold weather.

Pay attention to brake system maintenance even if you're not using friction brakes frequently. Have the brake system inspected according to your vehicle's maintenance schedule to catch any corrosion or degradation before it becomes a safety issue.

Regenerative braking represents one of the most significant efficiency improvements in electric vehicles. While it can't eliminate the need for charging or completely replace friction brakes, it meaningfully extends range, reduces brake maintenance, and improves the overall driving experience once you adapt to its unique characteristics.
