What is Pouch Cells?

Pouch cells are lithium-ion batteries encased in flexible aluminum-laminated film rather than rigid metal casings. This soft-pack design makes them 20-40% lighter than cylindrical or prismatic cells while achieving 90-95% packaging efficiency, the highest among battery formats.

Core Design and Construction

The pouch cell structure consists of layered electrodes sealed within a multi-layer protective film. The casing typically includes three distinct layers: an outer nylon layer providing mechanical strength, a middle aluminum foil layer blocking moisture and oxygen, and an inner polypropylene layer enabling heat sealing. This laminated design weighs significantly less than traditional steel or aluminum casings while maintaining adequate protection for internal components.

Internal components follow standard lithium-ion battery architecture. The cathode commonly uses lithium metal oxides such as LiCoO2, NMC, or LiFePO4, while the anode employs graphite or silicon-carbon composites. A porous separator made from polyethylene or polypropylene keeps the electrodes apart while allowing lithium ions to flow through the liquid or gel electrolyte during charge and discharge cycles.

The manufacturing process involves stacking or winding electrode sheets with separators, then enclosing them in the aluminum-laminate pouch. Tabs welded to current collectors extend from the sealed edges, providing electrical connections. Unlike cylindrical cells with safety vents, pouch cells rely on the seam seals to manage internal pressure buildup.

Energy Storage Performance

Pouch cells deliver energy density between 150-250 Wh/kg at the cell level, comparable to cylindrical cells and exceeding most prismatic designs. Recent advances have pushed laboratory prototypes beyond 600 Wh/kg in specialized lithium-metal configurations, though commercial products typically remain in the 200-300 Wh/kg range.

The flexible casing contributes directly to energy efficiency. By eliminating heavy metal enclosures, more of the total weight consists of active materials that store energy. Studies indicate pouch cells achieve 90-95% packaging efficiency compared to 70-85% for cylindrical cells, meaning a larger portion of space contains electrode materials rather than structural components.

Cycle life performance varies based on chemistry and operating conditions. Standard pouch cells using NMC cathodes typically deliver 800-1,200 cycles at 80% depth of discharge. LiFePO4 pouch variants extend this to over 2,000 cycles. However, pouch cells generally show slightly shorter cycle life than equivalent cylindrical cells due to greater sensitivity to mechanical stress and swelling.

Thermal Characteristics and Safety

Thermal management presents both advantages and challenges for pouch cells. The large surface-area-to-volume ratio enables efficient heat dissipation when cells are cooled from flat surfaces. Testing has shown edge cooling systems effectively manage temperature during normal operation and fast charging scenarios.

Thermal runaway behavior differs from rigid cell formats. Research using accelerating rate calorimetry found pouch cells enter thermal runaway at temperatures between 135-170°C, depending on separator melting points and state of charge. When failure occurs, the flexible casing typically swells and ruptures along seams rather than exploding violently like constrained cylindrical cells.

Safety reinforced layers have improved thermal stability substantially. In impact tests comparing 19 cells, 17 units with safety-reinforced layers remained intact while 12 bare pouch cells failed. The temperature rise rate during abuse conditions was 25-40% slower with enhanced safety features, providing additional reaction time for thermal management systems.

Swelling remains a persistent challenge. Gas generation during charge-discharge cycles causes gradual expansion, with 8-10% growth over 500 cycles considered normal. Battery pack designs must accommodate this expansion through compression systems or spacing adjustments. Excessive swelling can crack housings or damage adjacent components if not properly managed.

Comparison with Other Cell Formats

When compared to cylindrical cells, pouch cells offer distinct tradeoffs. Cylindrical formats provide superior mechanical stability through rigid metal casings and benefit from mature, highly automated manufacturing. Tesla's continued use of cylindrical cells in vehicles demonstrates their scalability and reliability. However, cylindrical cells leave gaps when packed together due to their round shape, reducing overall pack-level energy density.

Prismatic cells occupy middle ground between cylindrical and pouch formats. Their rectangular aluminum or steel casings provide more protection than pouch films while achieving better space utilization than cylindrical cells. Manufacturing costs for prismatic cells typically fall between the other two formats, though standardization remains limited across manufacturers.

The automotive industry shows split preferences. General Motors has committed to pouch cells for their Ultium platform, citing production speed and recyclability advantages. Conversely, Tesla explicitly avoids pouch cells due to thermal runaway concerns following high-profile recalls. Hyundai, Ford, and Nissan Leaf have successfully deployed pouch-cell battery packs, while BMW and others are shifting toward cylindrical formats.

Cost considerations favor pouch cells in certain scenarios. The simpler casing structure requires less material and can adapt to custom sizes without retooling. However, the need for external structural support and more sophisticated battery management systems can offset initial savings. A lithium ion battery pack using pouch cells requires careful module design to constrain and cool cells properly.

Applications Across Industries

Electric vehicles represent a major application area, particularly in models prioritizing range and interior space. Pouch cells enable manufacturers to maximize battery capacity within floor-mounted pack enclosures. The flexible form factor allows designers to fill irregular spaces and create ultra-thin battery configurations. Several manufacturers achieved over 300 miles of range using pouch-based packs.

Consumer electronics drove early pouch cell adoption. Smartphones, tablets, and laptops benefit from the ability to create custom-shaped batteries fitting device contours. The thin profile enables manufacturers to dedicate more internal volume to battery rather than structural elements. However, swelling issues have caused warranty claims when cells expand beyond designed tolerances in confined spaces.

Energy storage systems increasingly deploy pouch cells for residential and grid applications. The high packaging efficiency translates to more energy storage per rack unit in commercial installations. Home battery systems can achieve 10-15 kWh capacity in compact wall-mounted units. Large-scale deployments face challenges with cell-to-cell consistency and long-term swelling management.

Medical devices and aerospace applications leverage pouch cells where weight reduction provides critical advantages. Portable medical equipment, patient monitors, and diagnostic devices use custom-shaped pouch cells to minimize size and weight. Space applications value the high energy density, though radiation hardening requirements may limit chemistry options.

The electric vertical takeoff and landing (eVTOL) aircraft sector has embraced pouch cells for their power-to-weight ratio. These aircraft require high power output during vertical flight phases while maintaining minimal weight for efficiency. Pouch cells deliver both the burst power capability and light weight necessary for these demanding applications.

Manufacturing and Quality Control

Production of pouch cells involves several critical steps where precision directly impacts performance. Electrode coating must achieve uniform thickness across large sheets, as variations create localized hotspots during operation. Coating thickness typically ranges from 50-150 micrometers with tolerances under 5 micrometers for premium cells.

The stacking or winding process requires precise alignment between anode, cathode, and separator layers. Misalignment by even 1-2 millimeters can reduce capacity and increase internal resistance. Automated stacking machines achieve positioning accuracy within 0.5 millimeters while maintaining production rates above 60 cells per hour.

Electrolyte filling presents unique challenges for pouch cells. The stacked electrode structure requires sufficient wetting time for electrolyte to penetrate all layers completely. Incomplete wetting causes high impedance and premature failure. Manufacturing protocols typically allow 12-48 hours for wetting depending on electrode thickness and porosity.

Heat sealing quality determines long-term reliability. The aluminum-laminated film must seal at 170-200°C with precise pressure control to prevent leakage while avoiding damage to internal components. Advanced sealing equipment monitors temperature uniformity within ±2°C across the seal width.

Formation and aging processes activate the cells and stabilize performance. During initial charging, a solid electrolyte interface layer forms on the anode surface. This process generates gas that must be vented before final sealing. Manufacturers typically perform formation cycles while cells remain partially open, then reseal after degassing.

Current Developments and Trends

Solid-state battery technology may favor pouch cell formats. The flexible casing accommodates volume changes better than rigid containers as solid electrolytes densify or expand during cycling. Research prototypes have achieved over 500 Wh/kg with solid polymer electrolytes in pouch configurations, though commercial production remains years away.

Lithium-metal anodes represent another advancement direction. These anodes offer significantly higher energy density than graphite but face challenges with dendrite formation and swelling. Pouch cells can accommodate the expansion better than rigid formats, making them preferred candidates for lithium-metal batteries. Laboratory cells have demonstrated 600+ Wh/kg using delocalized electrolyte designs with lithium-metal anodes.

Silicon-carbon composite anodes are entering commercial production in pouch cells. Silicon provides triple the capacity of pure graphite but expands significantly during charging. The flexible pouch casing tolerates this expansion while mechanical compression systems manage cell thickness changes. Several manufacturers now offer cells with 10-20% silicon content in anode composites.

Manufacturing automation continues improving cost and quality. Next-generation production lines achieve over 100 pouch cells per minute with integrated quality inspection at each step. Machine vision systems detect coating defects, alignment errors, and seal integrity issues in real-time. These advances are reducing production costs toward parity with cylindrical cells.

Metal-free pouch cell designs eliminate traditional tab structures entirely. By using conductive polymer films, these designs reduce weight by an additional 5-10% while lowering electrical resistance. The approach simplifies assembly and potentially improves thermal management, though durability questions remain under investigation.

Key Considerations for Implementation

Successful pouch cell integration requires careful mechanical design. The cells need external structural support to prevent damage from vibration or impact. Battery packs typically employ aluminum or composite frames to constrain cell stacks while allowing controlled expansion. Compression systems apply 50-200 kPa pressure to maintain electrode contact and minimize swelling effects.

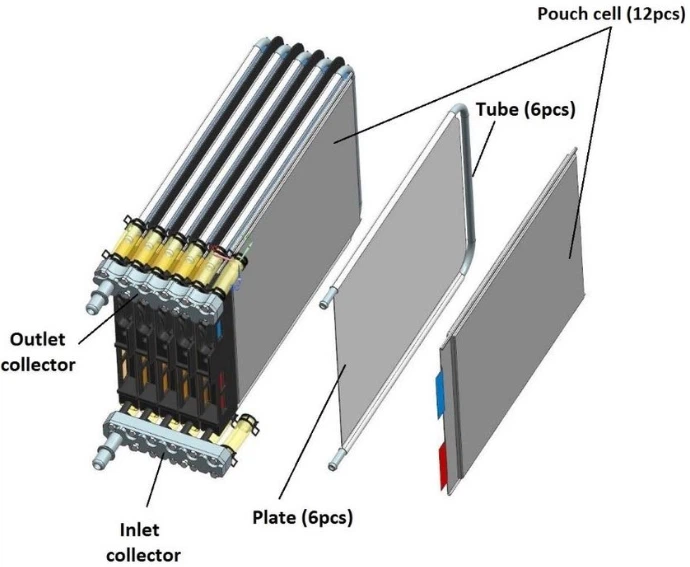

Thermal management systems must contact large flat surfaces efficiently. Most designs use cooling plates between cells with thermal interface materials ensuring good heat transfer. Achieving thermal contact resistance below 50 K·cm²/W requires attention to surface flatness and appropriate interface materials. Edge cooling through tabs provides supplementary heat removal paths.

Battery management systems for pouch cells require enhanced monitoring capabilities. Individual cell voltage and temperature sensing catches early signs of degradation or failure. Swelling detection through pressure sensors or thickness measurements enables predictive maintenance. Modern systems sample voltages at millisecond intervals during high-power operation.

Transportation and handling protocols differ from rigid cells. Pouch cells can puncture easily, creating safety hazards. Manufacturers typically ship cells in rigid trays with protective padding. Assembly processes must avoid sharp edges or points that could pierce the flexible casing during installation or operation.

End-of-life considerations are gaining importance as deployed volume increases. The aluminum-laminated films complicate recycling compared to all-metal casings. Separation of the multi-layer films from electrode materials requires additional processing steps. However, the absence of heavy steel cases reduces overall material input for recycling operations.

Frequently Asked Questions

What causes pouch cells to swell?

Swelling results from gas generation during normal electrochemical reactions and side reactions between electrode materials and electrolyte. As lithium ions shuttle between electrodes, some irreversible reactions produce gases like carbon dioxide and hydrocarbons. The flexible casing expands to accommodate this gas, with typical growth of 8-10% over 500 cycles being normal.

How do pouch cells perform in cold weather?

Performance declines at low temperatures due to increased internal resistance and slower reaction kinetics. Below 0°C, capacity drops by 20-40% depending on chemistry and discharge rate. LiFePO4 pouch cells typically handle cold better than NMC variants. Pre-heating systems in battery packs can restore normal performance by warming cells to 15-25°C before high-power operation.

Are pouch cells safe for consumer devices?

When properly designed and manufactured, pouch cells provide safe operation for consumer applications. Multiple safety features including separators with shutdown layers, pressure-sensitive venting paths, and battery management systems prevent dangerous conditions. Hundreds of millions of devices use pouch cells daily without incident when designed within proper operating parameters.

Can damaged pouch cells be repaired?

Unlike cylindrical cells with rigid casings, damaged pouch cells typically cannot be repaired safely. Even small punctures compromise the seal and allow moisture ingress, rapidly degrading the cell. Swollen cells indicate internal issues and should be replaced rather than attempting repair. The flexible casing makes structural repairs impractical while maintaining safety standards.
